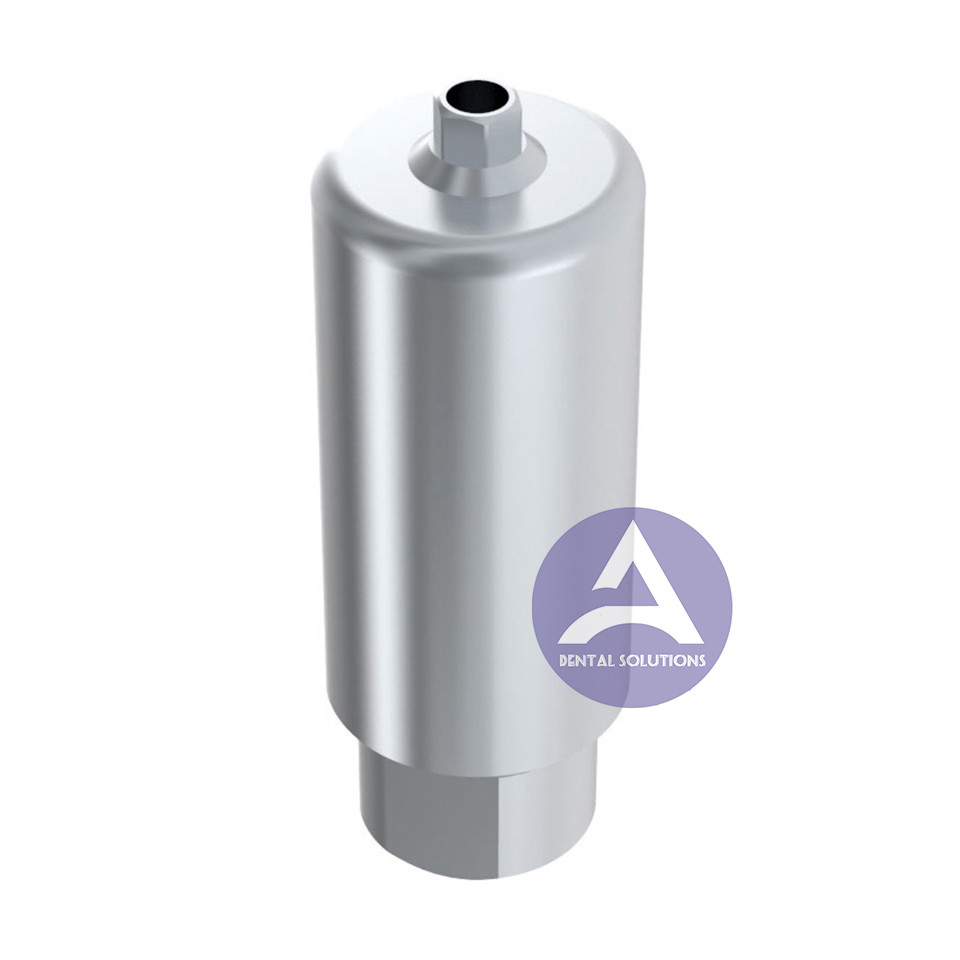

Zimmer Tapered Screw-Vent® Titanium Premill Blank 10mm NP(3.5mm) / RP(4.5mm) / WP(5.7mm) Custom Fabricated Abutment
Material:
Ti 6AI-4V ELI (Supply from Germany)
Feature:
* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm
Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.
Approved by CE, ISO 9001, ISO 13485
* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.
Points of Zimmer Tapered Screw-Vent® (TSV) Implant:
Fig. 1
Tapered Screw-Vent® titanium grade 5 implants are machined with a slightly tapered body geometry and triple lead thread design. The triple lead threads will force the implant at a faster rate in to the osteotomy site as compared to a single lead thread design implant. Four implant diameters (Fig.1) of 3.7, 4.1, 4.7 and 6mm in five lengths of 8, 10, 11.5, 13 and 16mm are available from Zimmer® for this implant system. 3.7 and 4.1mm diameter implants share the same implant/abutment interface (platform) of 3.5mm. 4.7mm diameter implants are machined with a 4.5mm implant/abutment interface and 6.0mm diameter implants are produced with a 5.7mm platform. The implant/abutment interface consist of a internal hexagon which is dimensioned according to the platform diameter.
Fig. 2
Each of the implants is packaged with a cover screw and color coded fixture mount. The color coding scheme is carried throughout the complete implant system for easy platform identification. Green signals the 3.5mm platform, purple signifies a 4.5mm platform and yellow corresponds to the 5.7mm platform. The fixture mount may serve as a delivery device, impression coping and temporary abutment. A oblong lacuna at the apex of the implant creates cutting surfaces and serves as a reservoir for bone chips. Two options are available in regards to the extent of the surface treatment at the coronal aspect (Fig.2) of the implat. Option one is a 1mm machined collar separating the textured area from the implant/abutment interface and option two extendes the textured area to the edge of the implant/abutment interface with added micro groves at the coronal aspect.
